- Waveform Tags: Movable text-based Tags can be attached to any portion of a waveform. These
tags will appear on reports, and are saved with archived waveforms.
- New View Modes: Scroll through a maximum length raw data file using Windows scroll
buttons. This feature allows viewing and fast isolation of points of interest of an entire
waveform file that is otherwise too long to fit on the screen, performing much like a chart
recorder display. Multiple data windows can sized to fit the display area, or 'tiled' for easy
access.
- New Zoom Modes: Paint the part of the waveform you want to expand, "click" - and there it is!
This new feature allows variable expansion of the portions of interest on a waveform, up to the
full pixel limit. Taking maximum advantage of the WinCAT high resolution digitization
process, the Paint Zoom function works with Windows tools such as magnifying glass zooms
and up/down arrow expansion buttons.
- New Report Features: Do you want to design your own multi page test report, showing the raw
data waveform plus analysis plots (such as SRS, or PSD), and any other graphic or text
information you desire? Simply 'cut' the required data screens including numeric data blocks, to
the Windows Notepad, then paste them into your word processor or other software. Full color
control of all display functions are available to enhance the appearance of your report. You can
change the background to white, and have colored or black and white waveforms and grids on
your reports.
- Familiar Features: Some functions carried over from CAT programs include digital lowpass
filtering, and triaxial acceleration and force sensor resultant vector magnitude and pointing angle
solutions. Also included are displacement mode (SDOF), either from drop or "0" velocity
launch, useful for package design analysis, and pyroshock and vibration analysis through
integration of the velocity term. Other screen editing functions include move, inversion, and
hold of unfiltered and filtered waveforms for comparison of the degree of filtering are also
standard.
- New Help System: An extensive and unique Help Screen Menu function provides on screen
interaction with the user to fully describe key features of the new software, in addition to
"Context Help Flags" which appear when the mouse is placed over any selection button.
| |

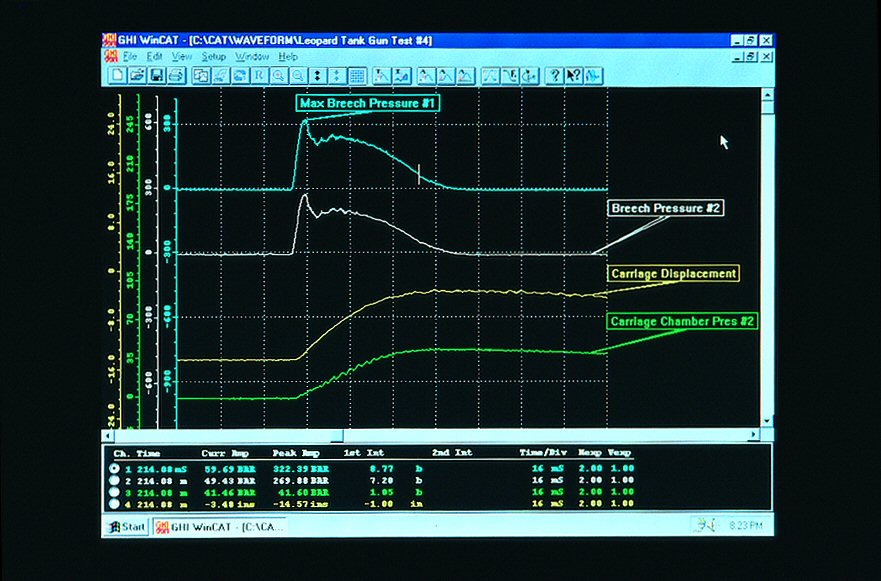

Edit,attach, and print out tags on waveforms.

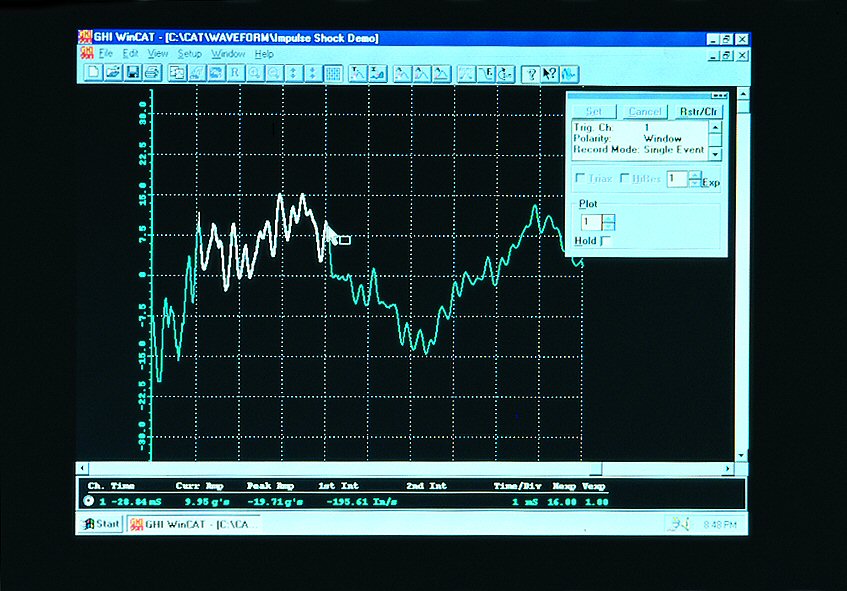

Variable waveform expansion

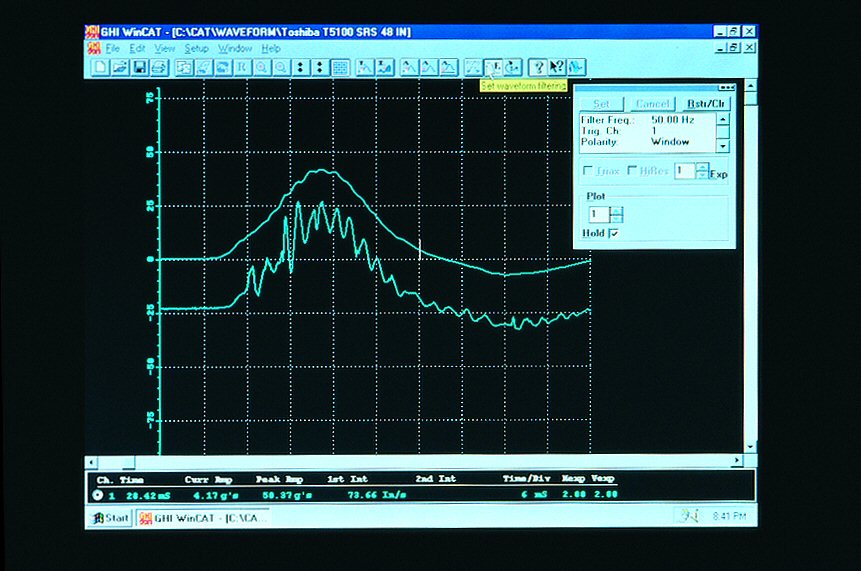

Post processing low pass digital filter.

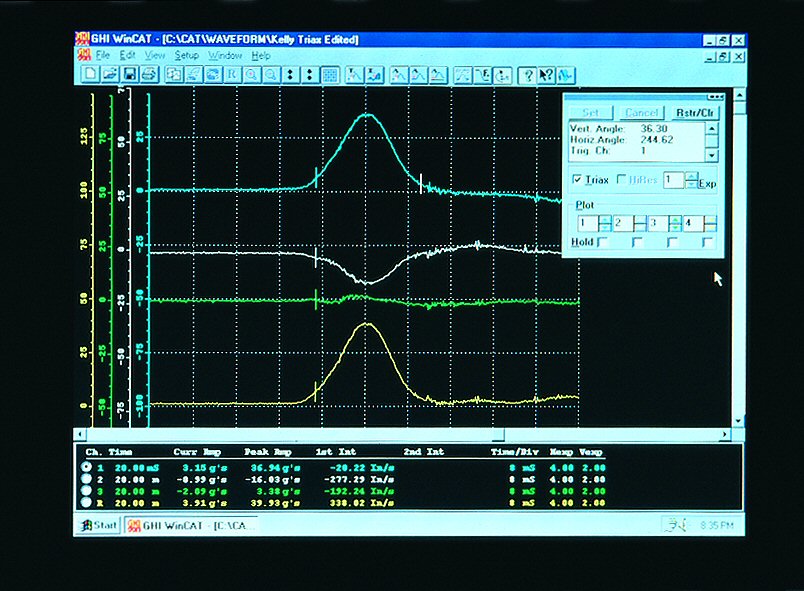

Triaxial sensor resultant vector plot with
angle.

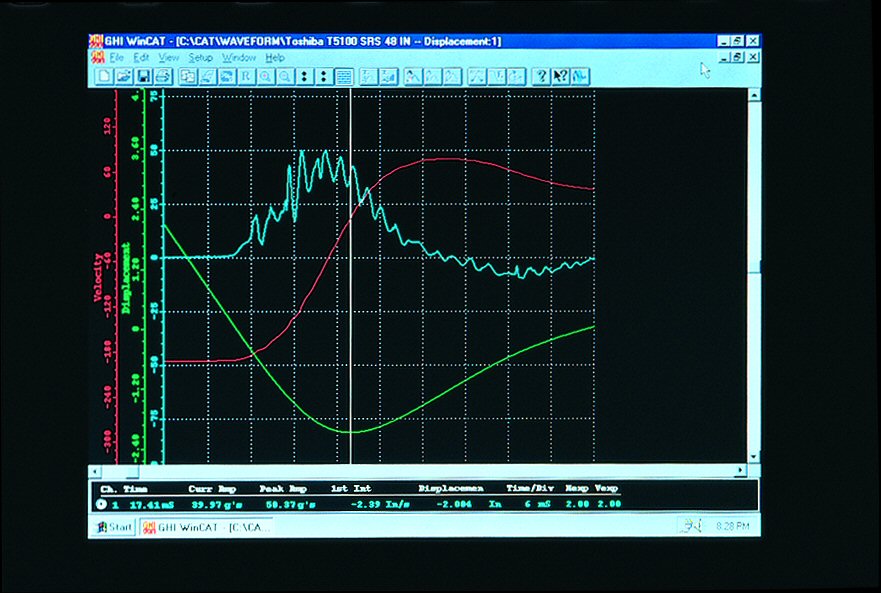

Acceleration, velocity and displacement vs
time plots.
|
