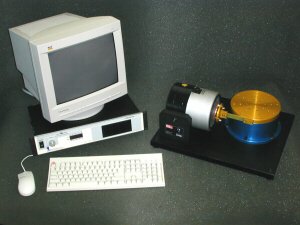

RVM-I System

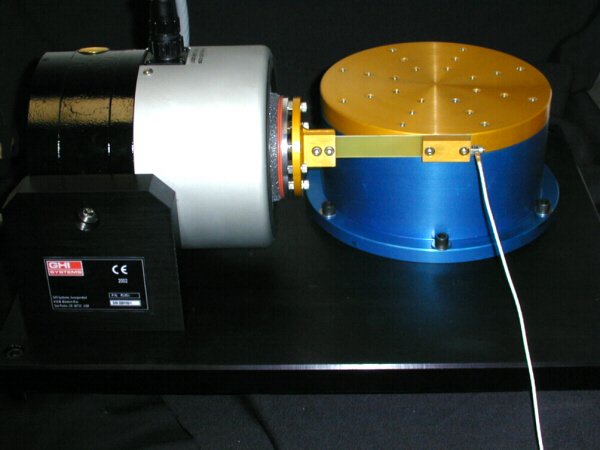

RVM-I Table - Click Above for a Larger Picture.
Specifications:
Capacity, non reactive mass: 5 lbs 2.3 kg, allows stacked drives to 5" above table
Actuator force, with cooling, random/sine: 50/75 lbf - 68/102 Nm
Actuator force, without cooling, random/sine: 28/40 lbf - 38/54 Nm
Frequency ranges: Random 6 Hz to 2 KHz or 2 Hz to 500 Hz (Set by Controller) Sine 2 Hz to 5000 Hz
Displacement at outer radius: +/- 0.5" max, +/- 7 degrees with furnished stinger
Weight with Actuator: 88 lbs. 40 kg
Dimensions: 20" w x 16" d x 9" h, 508 mm x 406 mm x 228 mm
Table: 8" dia. 203.2 mm
Mounting Hole Pattern: 24 ea M6 On 45 degree radials, 1" centers
Data Sheet (PDF format)
Click here to Download the Users Manual for the RVM-I (PDF format)
